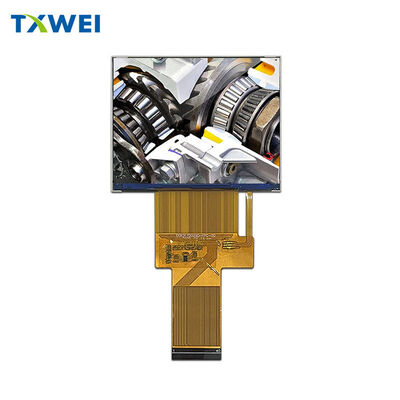

3.17 inch landscape LCD display 1024*768 high definition TFT industrial module with touch capability

produtos

3.17 inch landscape LCD display 1024*768 high definition TFT industrial module with touch capability

MOQ:	1
preço:	Negociável
Período de entrega:	7-16 dias
Método do pagamento:	L/C,D/A,D/P,T/T
Capacidade de abastecimento:	10.000 unidades

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem

SHENZHEN

Marca

TXWEI

Certificação

CE FCC ROHS

Número do modelo

TXW317001B0

Documento

Número de pixels:

1024*768

Direção de visualização:

Interface de exibição:

BOCADO DO RGB 24

Brilho:

600 lêndeas

Área Ativa:

64,51*48,38(mm)

Tamanho do contorno:

69,41*55,49*2,25(mm)

Temperatura operacional:

-20+70 ℃

Temperatura de armazenamento:

-30+80°C

Número de pinos:

40PIN

Destacar:

3.17 inch TFT LCD display

1024x768 industrial LCD module

touchscreen TFT display module

Descrição do produto

TXW317001B0

◆ 3.2" Industrial IPS Display ◆

1024×768 | 600 nits | -20°C~+70°C | RGB 24-bit

▎The Display Built for Extremes

Most screens fail when conditions get real. The TXW317001B0 doesn't know how to quit.

◈ Freezing cold → -20°C startup, no problem
◈ Blazing heat → +70°C continuous operation
◈ Blinding light → 600 nits cuts through glare
◈ Cramped spaces → 2.25mm thin, fits anywhere

Your product deserves a display that works as hard as your users do.

▎See What Others Miss

━━ Clarity Without Compromise

1024 × 768 Resolution
400 PPI pixel density. Microscopic cracks. Tissue textures. Surface defects. What hides on ordinary screens screams for attention here.

━━ Color That Stays True

178° IPS Viewing Angle
Head-on. Side angle. Upside down. Colors don't shift. Contrast doesn't collapse. Every viewer sees the same accurate image—no exceptions.

━━ Readable in Any Light

600 nits Peak Brightness
Outdoor fieldwork. Factory floors under harsh LEDs. Surgical suites with blazing overhead lights. Screen content stays visible when failure isn't an option.

▎Where It Belongs◇ Industrial InspectionBorescopes · Videoscopes · Quality Control Systems
Pipeline interiors. Engine compartments. Precision machinery guts. High resolution reveals millimeter-scale defects. Wide viewing angles let inspectors position the probe freely without losing image fidelity. Wide-temperature certification means arctic pipelines and desert solar farms get the same reliable performance.
◇ Medical VisualizationEndoscopes · Laparoscopes · Laryngoscopes
Inside human bodies, lighting is scarce and color accuracy saves lives. 600 nits brightness penetrates dark cavities. True-color IPS presentation helps clinicians distinguish healthy tissue from concerning anomalies. When the procedure runs long, the display keeps running too.
◇ Portable InstrumentationHandheld Gauges · Field Testers · Controller HMIs
Space is premium in portable designs. This display's compact footprint and minimal thickness preserve room for batteries, processors, and sensors. Industrial-grade reliability means fewer warranty claims and happier customers in the field.
Delivery & Support◈ Sample lead time: 3–5 business days
◈ Volume lead time: 4–6 weeks from PO confirmation
◈ Technical package: Initialization code samples, mechanical drawings, reliability test reports, application notes
◈ Customization available: Brightness tuning, interface pinout modifications, cover glass bonding, FPC length adjustments
