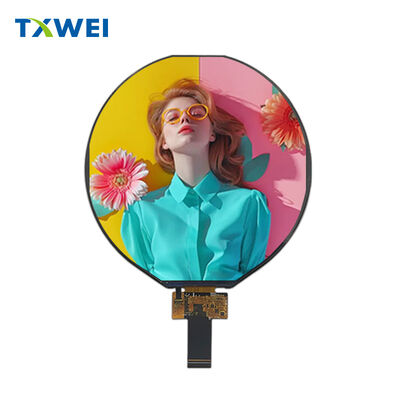

7inch round screen 1080*1080 with HDMI driver board MIPI desktop advertising medical beauty display LCD screen

produtos

7inch round screen 1080*1080 with HDMI driver board MIPI desktop advertising medical beauty display LCD screen

MOQ:	1
preço:	Negociável
Período de entrega:	7-16 dias
Método do pagamento:	L/C,D/A,D/P,T/T
Capacidade de abastecimento:	10.000 unidades

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem

SHENZHEN

Marca

TXWEI

Certificação

CE FCC ROHS

Número do modelo

TXW700197T0

Número de pixels:

1080*1080

Direção de visualização:

Interface de exibição:

Brilho:

600 lêndeas

Área Ativa:

177,557*177,557

Tamanho do contorno:

186,15*191,28*5,26mm

Temperatura operacional:

-20+70 ℃

Temperatura de armazenamento:

-30+80°C

Número de pinos:

40PIN

IC de exibição:

FL5893

Destacar:

7inch round LCD screen with HDMI

MIPI desktop advertising display

medical beauty LCD screen 1080p

Descrição do produto

TXW700197T0
round Canvas Display Module
Where 1:1 Aspect Ratio Meets 1080×1080 Resolution

The Problem with Rectangles

You've designed a circular robot face, but the eyes look stretched.
You've built a premium beauty mirror, but the face in the display is cropped at the chin.
You've created a rotating desktop ad player, but the vertical content has black bars on the sides.

The issue isn't your design. It's the screen.

For decades, displays have forced content into 16:9 or 16:10 boxes. But circular UI elements, symmetrical dashboards, and centered portrait content don't fit rectangular molds. The TXW700197T0 eliminates this compromise with a true 1:1 aspect ratio—a perfect square that treats height and width as equals.

177.557mm × 177.557mm: The Geometry of Balance

Active Display Area:
177.557 millimeters wide. 177.557 millimeters tall.
Not approximately square. Exactly square.

This symmetry transforms how you approach interface design:

For Robotics and Anime Statues:
Facial features render without distortion. Circular eyes stay circular. Mouth movements map 1:1 with your 3D models. When mounted behind a circular acrylic faceplate, the display fills the entire diameter without wasted corners or clipped edges.

For Medical Aesthetics and Beauty Mirrors:
Facial analysis algorithms see the full face—from hairline to chin, cheek to cheek—in a single frame. No panning required. No "move closer to center" prompts. The 1080×1080 resolution provides 1:1 pixel mapping for dermatological scanning equipment, ensuring that a millimeter on screen equals a millimeter in reality across both axes.

For Desktop Advertising and Digital Signage:
Content rotates seamlessly from landscape to portrait without aspect ratio distortion. A product video playing in vertical orientation fills the entire screen. When flipped horizontal, the composition remains identical. This is impossible on rectangular panels without cropping or letterboxing.

600 Nits IPS: Clarity from Every Angle

The 600 candela-per-square-meter brightness strikes a deliberate balance. Bright enough to remain visible in retail environments with overhead fluorescent lighting, yet restrained enough for intimate applications like vanity mirrors where excessive luminance causes eye strain.

IPS (In-Plane Switching) Technology ensures that color accuracy remains consistent whether the viewer stands directly in front or observes from 45 degrees above—a common scenario when displays are mounted on pedestals or embedded in countertop units. The 178-degree viewing angle coverage means that multiple viewers gathered around a robot or digital statue see identical colors and contrast, not the washed-out gamma shifts typical of TN panels.

Pure Display. Zero Touch Interference.

Notice the absence of touch specifications.
This is intentional.

The TXW700197T0 ships as a display-only module, leaving the touch decision entirely to your industrial design requirements. For medical aesthetics equipment where hygiene mandates resistive touch or specialized capacitive films, you aren't locked into incompatible factory-installed touch layers. For animatronic statues where touch isn't required, you avoid the cost and optical interference of unnecessary touch sensors.

The FL5893 driver IC manages the TFT array with integrated timing control, supporting 24-bit color depth through the MIPI DSI 4-lane interface. This high-speed serial connection—terminated in a standard 40-pin connector—delivers uncompressed video data while maintaining signal integrity in electromagnetically noisy environments like retail spaces or medical clinics.

Mechanical Integration: Precision Matters

Module Outline: 186.15mm × 191.28mm × 5.26mm

The 5.26-millimeter thickness accommodates the LED backlight unit and driver PCB while remaining slim enough for wall-mount applications or embedded installations in retail fixtures. The slight dimensional difference between width and height (186.15mm vs 191.28mm) accounts for the FPC (Flexible Printed Circuit) cable exit and driver board placement—critical details when designing bezels or faceplates.

Cover Glass Compatibility:
The flat surface profile supports optical bonding to 1.1mm or 2.0mm chemically strengthened cover glass. For beauty mirror applications, this allows direct lamination to semi-reflective mirror glass, creating the "magic mirror" effect where UI elements appear to float over the reflection. For robotic applications, the surface accepts anti-glare (AG) treatments that prevent the "plastic toy" look of glossy screens under exhibition hall lighting.

Thermal Design for Continuous Operation

Operating Range: -20°C to +70°C
Storage Range: -30°C to +80°C

These specifications acknowledge that desktop advertising displays may operate continuously in poorly ventilated retail kiosks, while medical equipment faces strict sterilization protocols involving temperature fluctuations. The FL5893 driver incorporates automatic temperature compensation, adjusting gamma curves as the display warms during continuous 24/7 operation, preventing color drift that could affect medical imaging accuracy or brand color consistency in advertising.

The -30°C storage minimum ensures survival during winter logistics chains, while the +80°C storage maximum accommodates warehouse storage in tropical climates without degrading the polarizer films or liquid crystal integrity.

Application Deep Dive: Where Square Screens Dominate

Medical Aesthetic Equipment:
In skin analysis machines, the square format captures the full facial topology without the "widescreen crop" that cuts off foreheads or chins. When displaying before/after comparisons, the symmetrical layout allows side-by-side vertical images with equal breathing room, rather than awkward horizontal squeezing.

Holographic Anime Statues:
Collectible figures with integrated displays require facial proportions that match the sculpted body. A rectangular screen forces oval distortion on animated eyes. The 1:1 ratio maintains the artist's intended geometry, with 1080 pixels providing sufficient resolution for detailed iris textures and expression changes.

Smart Beauty Mirrors:
When users stand 30-40cm from the mirror, the 177mm display width fills the optimal field of view for facial skincare routines. The square format accommodates both portrait-mode tutorials (showing full face and neck) and landscape-mode product comparisons (showing left/right side analysis) without rotating the hardware.

Desktop Advertising Players:
Retail tables and bar counters have limited space. A square display occupies less linear footprint than a 16:9 screen of equivalent area, allowing dual-sided placement on narrow tables. The 600-nit brightness cuts through ambient restaurant lighting without the power drain of 1000+ nit outdoor displays.

Development Support and Customization

Interface Compatibility:
The MIPI DSI 4-lane interface requires only four data pairs and one clock pair, simplifying PCB routing compared to parallel RGB interfaces. This is particularly valuable in slim robotic head designs where PCB real estate is constrained. Reference initialization sequences are available for Rockchip RK3566/RK3588, Raspberry Pi Compute Module 4, and NXP i.MX8M platforms.

Optical Enhancements:
While the standard 600-nit configuration suits most indoor applications, backlight modifications can adjust output to 400 nits for dimly lit medical consultation rooms or 800 nits for high-end retail window displays. Custom FPC cable lengths accommodate rotating mechanisms in advertising players or articulated joints in robotic necks.

Long-term Availability:
Designed for industrial and medical product lifecycles, the FL5893 driver IC and square panel form factor represent stable supply chain choices. This longevity commitment supports beauty equipment manufacturers who must guarantee 7-year spare part availability for FDA-regulated devices.

The Square Revolution Starts Here

Stop forcing your circular content into rectangular prisons.
Stop accepting distorted faces and cropped compositions.
Stop designing around the limitations of 16:9 legacy panels.

TXW700197T0 Specifications Summary:
7-inch diagonal | 1080×1080 resolution | 177.557×177.557mm active area | 600 nits IPS | MIPI DSI 4-lane | -20°C to +70°C operation | Display-only module (touch optional/customizable)

Request technical drawings and sample units today.
Our applications engineers can provide optical bonding guidelines for mirror integration and mechanical mounting recommendations for robotic articulation points.
