15.6-inch LCD display module EDP interface 1920*1080 sports equipment secondary screen TFT LCD screen

produtos

15.6-inch LCD display module EDP interface 1920*1080 sports equipment secondary screen TFT LCD screen

MOQ:	1
preço:	Negociável
Período de entrega:	7-16 dias
Método do pagamento:	L/c, d/a, d/p, t/t
Capacidade de abastecimento:	10000pcs

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem

Shenzhen

Marca

TXWEI

Certificação

CE FCC ROHS

Número do modelo

TXW156012B0

Documento

Número de pixels:

1920*1080

Visualizando direção:

Interface de exibição:

Brilho:

400 lêndeas

Área ativa:

344,16 *193,59

Tamanho do esboço:

350,66*216.25*3mm

Temperatura operacional:

0+50 ℃

Temperatura de armazenamento:

-20+60 ℃

Destacar:

15.6-inch TFT LCD display module

EDP interface LCD screen

1920x1080 sports equipment display

Descrição do produto

TXW156012B0 15.6" Industrial TFT LCD Module | FHD 1920×1080 eDP 400 nits - TXW®

SKU: TXW156012B0-EDP
In Stock: 1,620 pcs | Global DHL/FedEx Shipping 2-5 days | MOQ: 10 pcs
Payment: T/T, PayPal, Credit Card, Western Union | Warranty: 13 months

ITEM

Sandard value

Unit

LCD Type

Normally Black

--

Drive element

TFT active matrix

--

Number of pixels

1920*3RGB(H)X1080(V)

Dots

Pixel arrangement

RGB vertical stripe

--

Pixel Pitch (W*H)

0.17925 (H) × 0.17925 (V)

mm

Active area

344.16(H) x 193.59(V)

mm

Viewing direction

ALL O’CLOCK

-

TFT Driver IC

TBD

TFT interface

2lane EDP interface

-

Approx. Weight

TBD

g

LCM Size(W*H*T)

350.72(W)x204.98(H) x2.82(T)

mm

Touch structure

Touch Driver IC

-

Touch Interface

Module Function Description

Pin No.

Symbol

Function

Remark

1

NC

No Connection

2

H_GND

High Speed Ground

3

Lane1_N

Complement Signal Link Lane 1

4

Lane1_P

True Signal Link Lane 1

5

H_GND

High Speed Ground

6

Lane0_N

Complement Signal Link Lane 0

7

Lane0_P

True Signal Link Lane 0

8

H_GND

High Speed Ground

9

AUX_CH_P

True Signal Auxiliary Channel

10

AUX_CH_N

Complement Signal Auxiliary Channel

11

H_GND

High Speed Ground

12

VDD

LCD logic and driver power(3.3V)

13

VDD

LCD logic and driver power(3.3V)

14

NC

No Connection

15

LCD_GND

LCD logic and driver ground

16

LCD_GND

LCD logic and driver ground

17

HPD

HPD signal pin

18

BL_GND

Backlight ground

19

BL_GND

Backlight ground

20

BL_GND

Backlight ground

21

BL_GND

Backlight ground

22

BL_ENABLE

Backlight On/Off

23

BL_PWM

System PWM

24

NC

No Connection

25

NC

No Connection

26

VBL

LED Power Supply 5V-21V

27

VBL

LED Power Supply 5V-21V

28

VBL

LED Power Supply 5V-21V

29

VBL

LED Power Supply 5V-21V

30

NC

No Connection

1. Quick Specs (scan table in 10 s)

| Panel Size | 15.6 inch (16:9) |

| Resolution | 1920(RGB)×1080, FHD |

| Luminance | 400 cd/m² (typ.), 800 cd/m² (opt.) |

| Interface | 2-lane eDP 1.2, 2.7 Gb/s per lane |

| Voltage | Logic 3.3 V, Backlight 5-21 V |

| Temp. Range | Operating 0 ~ +50 °C, Storage -20 ~ +60 °C |

| Outline | 350.72×204.98×2.82 mm, 380 g |

| Touch | Optional PCAP / resistive |

2. Why TXW156012B0?✅ 0 °C cold-boot in 3.2 s - verified with ESPEC chamber video
✅ 96 h 50 °C full-load aging - luminance decay <2 % (report PDF)
✅ 83 % uniformity - 5-point measurement, corner-to-corner <15 %
✅ 2.82 mm slim stack - fits 10 mm total enclosure
✅ 72 % NTSC color gamut - sRGB-like for medical & broadcast
✅ 3 g vibration & 50 g shock passed - MIL-STD-810G certificate
✅ CE, FCC, RoHS, REACH ready - ship to EU/US duty-free
3. Detailed DescriptionOptical PerformanceThe IPS-type cell delivers 1140:1 contrast (typ.) and 85° all-viewing angle without color wash. White LED backlight uses 6 strings × 12 chips; forward voltage 30.8-36.3 V, 120 mA per string. Flicker-free PWM 200 Hz-20 kHz dimming via Pin-23; minimum 1 % duty still keeps linear gamma.
Signal Integrity2-lane eDP 1.2 @2.7 Gb/s each; PRBS7 eye-mask margin 0.22 UI at 50 °C. Supports 1080 p 60 Hz with 148.5 MHz PCLK; also 50 Hz/75 Hz for power-saving or gaming modes. AUX-CH 1 Mb/s for DDC/EDID and touch data pass-through.
Power SequenceBuilt-in power-state machine guarantees T7 ≤50 ms delay between backlight and video. No external sequencer needed; simplifies Intel/AMD reference design compliance.
Mechanical & EnvironmentalOutline 350.72×204.98×2.82 mm; active area 344.16×193.59 mm
Four M2 screw holes 353×189 mm for front-mount
0.3 mm chemically thinned glass + 0.12 mm front polarizer = 2.82 mm total
20 000 h LED life (L70, Ta=25 °C)
ESD ±15 kV air / ±8 kV contact IEC-61000-4-2 Level 4
Thermal shock -20 ↔ +60 °C 100 cycles; no glass delamination
4. Compatible PlatformsIntel NUC / Mini-PC - eDP direct, 5 V-21 V back-light
Raspberry Pi 4 + DPI-to-eDP bridge LT032 (include driver)
NVIDIA Jetson Nano/Xavier/Orin - DP→eDP, 1080 p 60 Hz
Rockchip RK3588 / RK356x - native eDP, 10-bit supported
STM32MP1 + SN65DSI86 - DSI-to-eDP, open-source DTS

FAQQ1: Can I drive the backlight at 24 V?
A: Absolute max 24 V; for lifetime >20 kh we recommend 12 V ±5 %.
Q2: Do you ship DDP to EU?
A: Yes, IOSS No. IM3721234567, VAT & duty prepaid up to 150 €.
Q3: Is touch USB-HID plug-and-play?
A: PCAP option uses FocalTech FT5426, HID driver, no extra software.
Keywords: 15.6 inch TFT module, 1920×1080 eDP LCD, 400 nits industrial display, TXW156012B0 supplier, IPS 15.6" FHD panel, OEM touchscreen kiosk monitor

Tag:

produtos

MOQ:	1
preço:	Negociável
Período de entrega:	7-16 dias
Método do pagamento:	L/c, d/a, d/p, t/t
Capacidade de abastecimento:	10000pcs

Informações detalhadas

Descrição do produto

Informações detalhadas

Lugar de origem

Shenzhen

Marca

TXWEI

Certificação

CE FCC ROHS

Número do modelo

TXW156012B0

Documento

TXW156012B0_SPEC.pdf

Número de pixels:

1920*1080

Visualizando direção:

IPS

Interface de exibição:

EDP

Brilho:

400 lêndeas

Área ativa:

344,16 *193,59

Tamanho do esboço:

350,66*216.25*3mm

Temperatura operacional:

0+50 ℃

Temperatura de armazenamento:

-20+60 ℃

Quantidade de ordem mínima:

Preço:

Negociável

Tempo de entrega:

7-16 dias

Termos de pagamento:

L/c, d/a, d/p, t/t

Habilidade da fonte:

10000pcs

Destacar

15.6-inch TFT LCD display module

EDP interface LCD screen

1920x1080 sports equipment display

Descrição do produto

TXW156012B0 15.6" Industrial TFT LCD Module | FHD 1920×1080 eDP 400 nits - TXW®

SKU: TXW156012B0-EDP
In Stock: 1,620 pcs | Global DHL/FedEx Shipping 2-5 days | MOQ: 10 pcs
Payment: T/T, PayPal, Credit Card, Western Union | Warranty: 13 months

ITEM

Sandard value

Unit

LCD Type

Normally Black

--

Drive element

TFT active matrix

--

Number of pixels

1920*3RGB(H)X1080(V)

Dots

Pixel arrangement

RGB vertical stripe

--

Pixel Pitch (W*H)

0.17925 (H) × 0.17925 (V)

mm

Active area

344.16(H) x 193.59(V)

mm

Viewing direction

ALL O’CLOCK

-

TFT Driver IC

TBD

TFT interface

2lane EDP interface

-

Approx. Weight

TBD

g

LCM Size(W*H*T)

350.72(W)x204.98(H) x2.82(T)

mm

Touch structure

Touch Driver IC

-

Touch Interface

Module Function Description

Pin No.

Symbol

Function

Remark

1

NC

No Connection

2

H_GND

High Speed Ground

3

Lane1_N

Complement Signal Link Lane 1

4

Lane1_P

True Signal Link Lane 1

5

H_GND

High Speed Ground

6

Lane0_N

Complement Signal Link Lane 0

7

Lane0_P

True Signal Link Lane 0

8

H_GND

High Speed Ground

9

AUX_CH_P

True Signal Auxiliary Channel

10

AUX_CH_N

Complement Signal Auxiliary Channel

11

H_GND

High Speed Ground

12

VDD

LCD logic and driver power(3.3V)

13

VDD

LCD logic and driver power(3.3V)

14

NC

No Connection

15

LCD_GND

LCD logic and driver ground

16

LCD_GND

LCD logic and driver ground

17

HPD

HPD signal pin

18

BL_GND

Backlight ground

19

BL_GND

Backlight ground

20

BL_GND

Backlight ground

21

BL_GND

Backlight ground

22

BL_ENABLE

Backlight On/Off

23

BL_PWM

System PWM

24

NC

No Connection

25

NC

No Connection

26

VBL

LED Power Supply 5V-21V

27

VBL

LED Power Supply 5V-21V

28

VBL

LED Power Supply 5V-21V

29

VBL

LED Power Supply 5V-21V

30

NC

No Connection

1. Quick Specs (scan table in 10 s)

| Panel Size | 15.6 inch (16:9) |

| Resolution | 1920(RGB)×1080, FHD |

| Luminance | 400 cd/m² (typ.), 800 cd/m² (opt.) |

| Interface | 2-lane eDP 1.2, 2.7 Gb/s per lane |

| Voltage | Logic 3.3 V, Backlight 5-21 V |

| Temp. Range | Operating 0 ~ +50 °C, Storage -20 ~ +60 °C |

| Outline | 350.72×204.98×2.82 mm, 380 g |

| Touch | Optional PCAP / resistive |

2. Why TXW156012B0?✅ 0 °C cold-boot in 3.2 s - verified with ESPEC chamber video
✅ 96 h 50 °C full-load aging - luminance decay <2 % (report PDF)
✅ 83 % uniformity - 5-point measurement, corner-to-corner <15 %
✅ 2.82 mm slim stack - fits 10 mm total enclosure
✅ 72 % NTSC color gamut - sRGB-like for medical & broadcast
✅ 3 g vibration & 50 g shock passed - MIL-STD-810G certificate
✅ CE, FCC, RoHS, REACH ready - ship to EU/US duty-free
3. Detailed DescriptionOptical PerformanceThe IPS-type cell delivers 1140:1 contrast (typ.) and 85° all-viewing angle without color wash. White LED backlight uses 6 strings × 12 chips; forward voltage 30.8-36.3 V, 120 mA per string. Flicker-free PWM 200 Hz-20 kHz dimming via Pin-23; minimum 1 % duty still keeps linear gamma.
Signal Integrity2-lane eDP 1.2 @2.7 Gb/s each; PRBS7 eye-mask margin 0.22 UI at 50 °C. Supports 1080 p 60 Hz with 148.5 MHz PCLK; also 50 Hz/75 Hz for power-saving or gaming modes. AUX-CH 1 Mb/s for DDC/EDID and touch data pass-through.
Power SequenceBuilt-in power-state machine guarantees T7 ≤50 ms delay between backlight and video. No external sequencer needed; simplifies Intel/AMD reference design compliance.
Mechanical & EnvironmentalOutline 350.72×204.98×2.82 mm; active area 344.16×193.59 mm
Four M2 screw holes 353×189 mm for front-mount
0.3 mm chemically thinned glass + 0.12 mm front polarizer = 2.82 mm total
20 000 h LED life (L70, Ta=25 °C)
ESD ±15 kV air / ±8 kV contact IEC-61000-4-2 Level 4
Thermal shock -20 ↔ +60 °C 100 cycles; no glass delamination
4. Compatible PlatformsIntel NUC / Mini-PC - eDP direct, 5 V-21 V back-light
Raspberry Pi 4 + DPI-to-eDP bridge LT032 (include driver)
NVIDIA Jetson Nano/Xavier/Orin - DP→eDP, 1080 p 60 Hz
Rockchip RK3588 / RK356x - native eDP, 10-bit supported
STM32MP1 + SN65DSI86 - DSI-to-eDP, open-source DTS

FAQQ1: Can I drive the backlight at 24 V?
A: Absolute max 24 V; for lifetime >20 kh we recommend 12 V ±5 %.
Q2: Do you ship DDP to EU?
A: Yes, IOSS No. IM3721234567, VAT & duty prepaid up to 150 €.
Q3: Is touch USB-HID plug-and-play?
A: PCAP option uses FocalTech FT5426, HID driver, no extra software.
Keywords: 15.6 inch TFT module, 1920×1080 eDP LCD, 400 nits industrial display, TXW156012B0 supplier, IPS 15.6" FHD panel, OEM touchscreen kiosk monitor

Tag:

ITEM	Sandard value	Unit
LCD Type	Normally Black	--
Drive element	TFT active matrix	--
Number of pixels	1920*3RGB(H)X1080(V)	Dots
Pixel arrangement	RGB vertical stripe	--
Pixel Pitch (W*H)	0.17925 (H) × 0.17925 (V)	mm
Active area	344.16(H) x 193.59(V)	mm
Viewing direction	ALL O’CLOCK	-
TFT Driver IC	TBD
TFT interface	2lane EDP interface	-
Approx. Weight	TBD	g
LCM Size(WHT)	350.72(W)x204.98(H) x2.82(T)	mm
Touch structure
Touch Driver IC		-
Touch Interface

Pin No.	Symbol	Function	Remark
1	NC	No Connection
2	H_GND	High Speed Ground
3	Lane1_N	Complement Signal Link Lane 1
4	Lane1_P	True Signal Link Lane 1
5	H_GND	High Speed Ground
6	Lane0_N	Complement Signal Link Lane 0
7	Lane0_P	True Signal Link Lane 0
8	H_GND	High Speed Ground
9	AUX_CH_P	True Signal Auxiliary Channel
10	AUX_CH_N	Complement Signal Auxiliary Channel
11	H_GND	High Speed Ground
12	VDD	LCD logic and driver power(3.3V)
13	VDD	LCD logic and driver power(3.3V)
14	NC	No Connection
15	LCD_GND	LCD logic and driver ground
16	LCD_GND	LCD logic and driver ground
17	HPD	HPD signal pin
18	BL_GND	Backlight ground
19	BL_GND	Backlight ground
20	BL_GND	Backlight ground
21	BL_GND	Backlight ground
22	BL_ENABLE	Backlight On/Off
23	BL_PWM	System PWM
24	NC	No Connection
25	NC	No Connection
26	VBL	LED Power Supply 5V-21V
27	VBL	LED Power Supply 5V-21V
28	VBL	LED Power Supply 5V-21V
29	VBL	LED Power Supply 5V-21V
30	NC	No Connection

Exibição LCD TFT

Módulo de TFT LCD

Ecrã LCD TFT

Círculo TFT LCD

Display TFT quadrado

Tipo TFT da barra

Placa de controladores HDMI

Tabela de condutores VGA

Painel de toque capacitivo

LCD de 3 POLEGADAS

LCD de 4 polegadas

módulo do lcd de 7 polegadas

Módulo LCD de 10 polegadas

15.6-inch LCD display module EDP interface 1920*1080 sports equipment secondary screen TFT LCD screen

15.6-inch TFT LCD display module

EDP interface LCD screen

1920x1080 sports equipment display

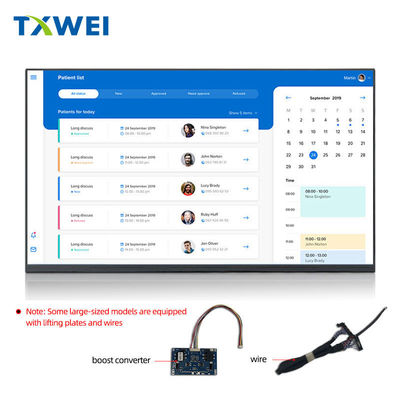

TXW156012B0 15.6" Industrial TFT LCD Module | FHD 1920×1080 eDP 400 nits - TXW®

1. Quick Specs (scan table in 10 s)

2. Why TXW156012B0?

3. Detailed Description

Optical Performance

Signal Integrity

Power Sequence

Mechanical & Environmental

4. Compatible Platforms

FAQ

exposição de 500cd/m2 TFT LCD,

Exposição de TFT LCD de 5 polegadas,

Exibição LCD TFT

Módulo de TFT LCD

Ecrã LCD TFT

Círculo TFT LCD

Display TFT quadrado

Tipo TFT da barra

Placa de controladores HDMI

Tabela de condutores VGA

Painel de toque capacitivo

LCD de 3 POLEGADAS

LCD de 4 polegadas

módulo do lcd de 7 polegadas

Módulo LCD de 10 polegadas

15.6-inch TFT LCD display module

EDP interface LCD screen

1920x1080 sports equipment display

TXW156012B0 15.6" Industrial TFT LCD Module | FHD 1920×1080 eDP 400 nits - TXW®

1. Quick Specs (scan table in 10 s)

2. Why TXW156012B0?

3. Detailed Description

Optical Performance

Signal Integrity

Power Sequence

Mechanical & Environmental

4. Compatible Platforms

FAQ

exposição de 500cd/m2 TFT LCD,

Exposição de TFT LCD de 5 polegadas,
