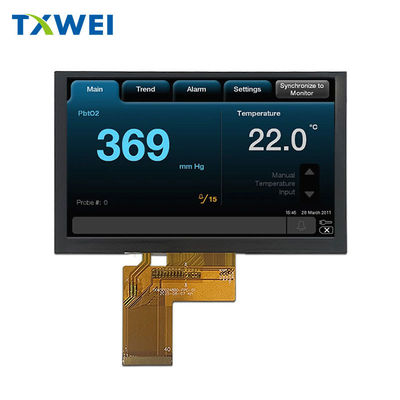

5-inch TFT LCD screen with RGB interface, 800 * 480 color LCD display, customized capacitive touch screen

800 × 480 true color wide-angle+30000h lifespan, the Tianxianwei 5-inch TXW500248B1 is a heavyweight hit. This module adopts a 5.0-inch high brightness TFT panel with a resolution of 800 × RGB × 480, a color gamut of up to 16.7 M, and a 24 bit true color RGB interface, bringing a more vivid and delicate visual experience to industrial control, smart homes, car multimedia, and portable medical devices.

• True Color Vision
800 x RGB x 480 pixels, 0.135 mm fine dot pitch, 108.0 x 64.8 mm effective display area, smooth and natural color transitions, meeting the application scenarios that pursue the ultimate in image quality details.

• Full view accessibility
The ALL O'CLOCK perspective design ensures that the contrast ratio is always greater than 10:1, whether viewed from a flat, side, or overhead perspective, ensuring clear and readable information from multiple angles.

• High brightness LED backlight
18 high brightness white LEDs with a typical forward voltage of 6V, stable brightness, and a lifespan of ≥ 30000 hours; even in strong outdoor light environments, the image remains eye-catching.

• Low power consumption&easy integration
3.3V single power supply, FPC direct insertion interface, 40 pin standard definition (RGB888+HSYNC/VSYNC/DE/CLK), significantly reducing system wiring complexity and shortening development cycle.

• Strict environment, stable as one
-Operating temperature from 20 ℃ to+70 ℃, storage temperature from -30 ℃ to+80 ℃; Through 6 reliability tests including 96 hours of high temperature and high humidity, as well as cold and hot shock, we have calmly responded to industrial environmental challenges.

• Environmental worry free
The full process lead-free technology complies with RoHS and REACH regulations, meeting global export demands.

Application scenarios

Industrial HMI&Edge Control
Programmable logic controllers (PLCs), servo drives, CNC panels, laser/textile/injection molding equipment consoles - maintain high contrast and wide viewing angles even in dust, oil, strong light, and vibration environments, improving operational efficiency and safety.

Intelligent Building and Home Gateway
Indoor intelligent terminal, elevator floor display, intelligent access control intercom, temperature control panel -24 bit true color makes UI icons, dynamic curves, and video advertisements delicate and vivid, and the ALL O'CLOCK perspective meets the simultaneous viewing needs of multiple people.

Car mounted rear loading and two wheeled travel
Car multimedia player, driving recorder, intelligent reversing mirror, electric motorcycle dashboard -6V high brightness LED backlight is not afraid of outdoor sunlight, starting at -20 ℃ to ensure normal ignition in cold and high-altitude areas.

Portable Medical Devices
Monitor, color ultrasound, infusion pump, home ventilator - high color depth restored blood oxygen waveform and image details; Lead free environmental protection+long-life LED meets medical certification and one-time/repeated disinfection requirements.

Commercial display and advertising machines
Supermarket shelf price tag screen, elevator poster machine, POS machine auxiliary screen - thin and light with a thickness of 2.78mm and a standard size of 120.7 × 75.8mm, convenient for embedded or external installation, with true color image quality to improve advertising conversion rate.

Testing Instruments and Experimental Teaching
Oscilloscope, spectrum analyzer, university experimental box - RGB parallel interface has fast refresh and can display high-speed sampling waveforms in real time; Industrial grade reliability supports 7 × 24-hour scientific research online testing.

Outdoor handheld and military reinforcement
Portable detection terminal, individual communication device, unmanned aerial vehicle ground station - -30 ℃~+80 ℃ storage temperature width and thermal shock 10 cycles reliability verification, ensuring stable imaging in harsh outdoor environments.

Quick overview of specifications
• Module size: 120.70 × 75.80 × 2.78 mm
• Display mode: Normally Black TFT active matrix
• Interface: 24 bit RGB parallel (DE mode)
• Backlight: 6 V typ/180 mA max
• Weight: TBD (<45 g typ)

Supply and Support

Starting today, we accept engineering samples and bulk orders. Tianxianwei Technology provides complete reference design, initialization code, and technical support to help customers complete product import in the shortest possible time.
