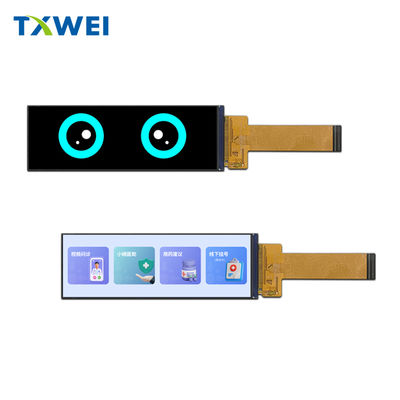

4.6-inch LCD strip screen 320*960 with MIPI interface 500 brightness agricultural machinery instrument display

Tianxianwei Technology releases a new generation of 4.6-inch bar shaped high-definition TFT - TXW460010B0 Full screen 'little waist', making every inch pixel stand out!

In January 2025, Shenzhen - TXWEI, a company specializing in small and medium-sized display solutions, announced today the launch of its new 4.6-inch strip TFT-LCD module TXW460010B0. The product is aimed at scenarios such as in car central control, smart home, industrial control, and high-end retail signage, redefining the bar screen experience with its four core advantages of "long aspect ratio, narrow border, high brightness, and MIPI high-speed interface".

1,Industrial design that catches the eye at a glance
With a slender ratio of 18.5:5.5, the body is only 39.5 mm × 117 mm × 2.4 mm, thin and light like a blade, and can be flexibly embedded in narrow spaces.
2.4mm ultra-thin thickness, reduced by 20% compared to traditional solutions, leaving more room for the overall structure of the machine.
Full view ALL O'CLOCK technology, with consistent colors at any angle, bidding farewell to "rainbow patterns".

2,320 × 960 true RGB, 16.7 million colors stand out before your eyes
0.1149 mm precision pixel pitch, PPI up to 221, delicate and sharp image.
8 high brightness white LED backlights, with a typical brightness of 500 cd/m ², still clear and readable under the scorching sun.
The contrast ratio is 1000:1, with clear black and white, bringing a cinema level visual hierarchy.

3,2-lane MIPI DSI, fast and energy-efficient
High speed serial interface, only 10 wires are needed to complete video and control signal transmission, with lower EMI.
The dual voltage design of 1.8V I/O and 2.8V core reduces typical power consumption by more than 30% compared to RGB parallel interfaces.
Support Sleep In/Out dynamic sleep mode, with static UI scene power consumption as low as milliwatts.

4,Vehicle grade reliability, designed for harsh scenarios
Working temperature -20 ℃~+70 ℃, storage temperature -30 ℃~+80 ℃, fearless of extreme cold and heat.
Six reliability tests, including 96 hours of double 85 high temperature and high humidity, and 10 cycles of cold and hot shock, passed once.
LED backlight has an ultra long lifespan of 30000 hours and remains bright for five years.

5,Development friendly, get started immediately
Standard FPC 30Pin output, with a PIN distance of 0.5mm, can be directly connected to mainstream controllers.
Provide Linux/Android/RTOS reference drivers, MIPI DSI initialization code, and hardware design guidelines.
Compliant with RoHS&REACH environmental directives, meeting export requirements to North America and the European Union.

TXW460010B0 4.6 "bar screen with" ultra long "ratio, full view angle, and 500 cd/m ² high brightness, naturally suitable for scenes with" narrow space+information display ". Below is a quick reference table for common, implemented, or currently being validated industry applications, organized by "Scene Pain Points → Screen Value", to help you quickly determine if they can be used and where they should be used.

Car electronics
• Central control strip secondary screen: displays air conditioning, seats, volume, and shortcut function keys, solving the problem of crowded interaction on the main screen.
• Streaming media rearview mirror: With an ultra wide ratio, one screen simultaneously displays rearview images, time/weather/call reminders.
• Dashboard information bar: Vehicle speed, RPM, gear, ADAS warning icons, with a long bar spanning the "lower edge" of the instrument panel.

Smart Home/IoT
• 86 boxes/120 boxes of smart panels: Vertical installation is a "whole control strip", with clear visibility of lighting, scenes, music, and energy consumption.
• Refrigerator door status bar: Located on a narrow 40mm gap above the door handle, it displays temperature, filter life, and weather.
• Top of washing machine/dryer: remaining time, program progress, fault codes, IPS full view side view is also clear.

New Retail&Advertising
• Shelf electronic price tag (long strip version): One screen displays the product name, original price, current price, and QR code, with a length that is flush with the shelf.
• POS cash register secondary screen: facing customers, scrolling displays order details, member points, and advertisements.
• Coffee shop/milk tea machine "ordering screen": vertically placed at the cup outlet, rotating production progress+pickup number.

Industrial Control&Instrumentation
• PLC/frequency converter/servo driver: Upgrade the original 128 × 64 monochrome dot matrix directly to a color graphic bar interface.
• Test equipment channel strip: 8-16 devices are arranged side by side, with each device displaying real-time waveforms and alarms on one screen.
• Andon Kanban for Production Line: A long screen embedded in the lighthouse column, displaying the status of workstations and production counts in a scrolling manner.

Medical&Health
• Ward bed screen: installed in a 40mm aluminum profile at the head of the bed, displaying the patient's name, nursing level, and infusion progress.
• Medical beauty/dental equipment: The "smiling progress bar" on the top of the equipment visualizes the treatment stage and remaining time.

Finance&Public Information
• ATM/self-service terminal top scrolling screen: horizontal scrolling interest rates and announcements.
• Subway/bus station "one screen, one line": the length is level with the light box, displaying the arrival time and congestion level.
